See how it's done Adjusting kitchen doors
Watch one of our team adjust a kitchen cupboard door. You'll be able to do this at home, without the need for a visit from one of our team.
You might also like…
Let's help you with
Adjusting kitchen furniture
It's quite normal for the the doors and drawers in your kitchen to require adjusting. Here's a handy guide on how to get that perfect alignment.
.jpg?la=en&h=1200&w=1800&mw=2304&hash=1D86BCB4D0B451666067729D5D3D57AB)

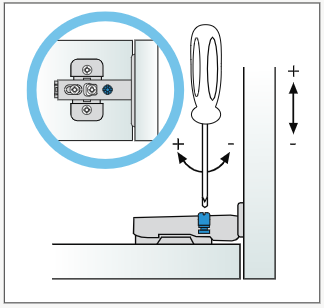

Side Adjustment
The side adjustment is made by rotating the appropriate screw on the hinge arm.

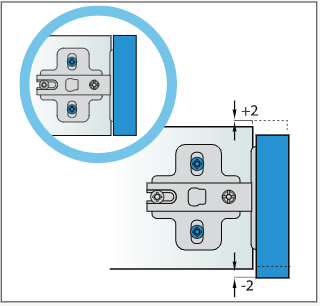

Height Adjustment
For height adjustment the two mounting plate fixing screws have to be temporarily released while making the manual adjustment.

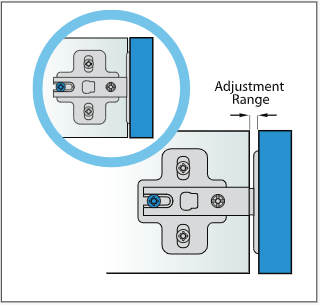

Depth Adjustment
The depth adjustment is made by temporarily releasing the adjustment screw or fixing screw. After the adjustment is made the screw has to be re-tightened.
Expert Advice Caring for your door hinges and drawer runners
It’s a good idea to inspect the door hinges and drawer runners from time to time so that any dirt, fluff or general grime can be removed.
This can be done with a soft, dry brush or a duster, or even the nozzle of a vacuum cleaner. Although lubrication is usually not required a small amount of household spray polish may be used.
This can be done with a soft, dry brush or a duster, or even the nozzle of a vacuum cleaner. Although lubrication is usually not required a small amount of household spray polish may be used.
.jpg?la=en&h=959&w=1438&mw=1438&hash=7B93FCF36E346D1DB494D0DA96033495)

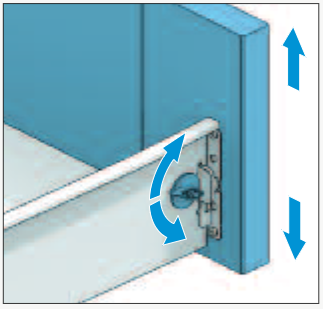

Supra Cream - Step 1
Adjust the drawer frontal height by rotating the lever clockwise/anti-clockwise.

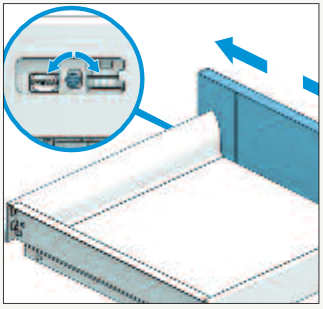

Gallery Silver - Step 1
To adjust the drawer front vertically, rotate the grooved wheel clockwise/anti-clockwise.

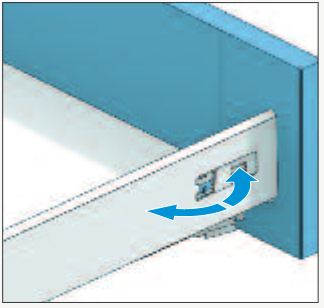

Gallery Silver - Step 2
To adjust the drawer front horizontally, rotate the screw clockwise/anti-clockwise.
See how it's done Adjusting kitchen draws
We'll show you how to adjust your kitchen drawers without the need for a visit from one of our team.
